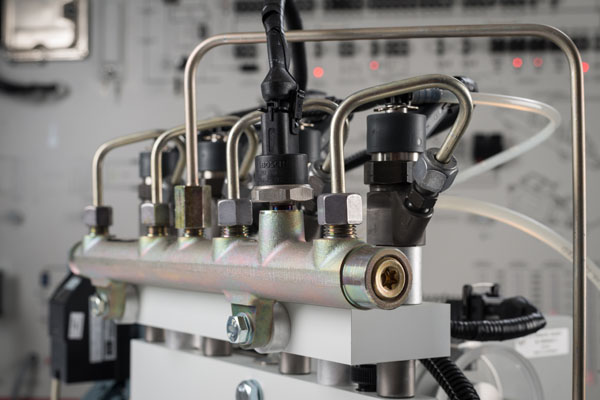

Common rail technology is the most widespread diesel injection system currently used in automotive production world-wide. Instead of the previously used distribution pump with its complicated mechanical parts and injectors which determine the injection pressure, a high-pressure pump of much simpler construction with a pressure of up to 1200 bar and piezoelectric injectors are now used

Components of equipment sets

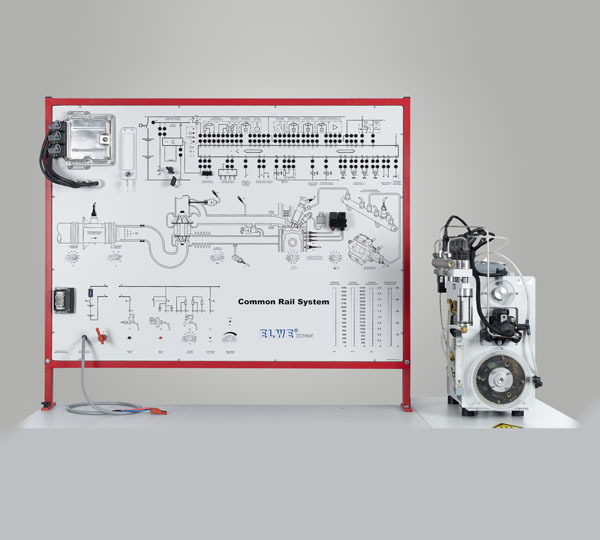

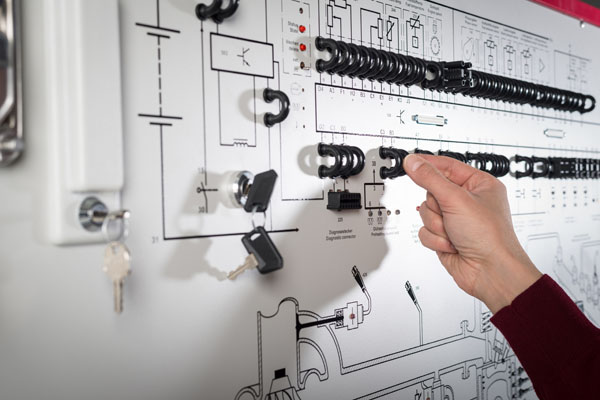

1 8-1503440-001-12-0 Experiment stand "Common Rail " EW

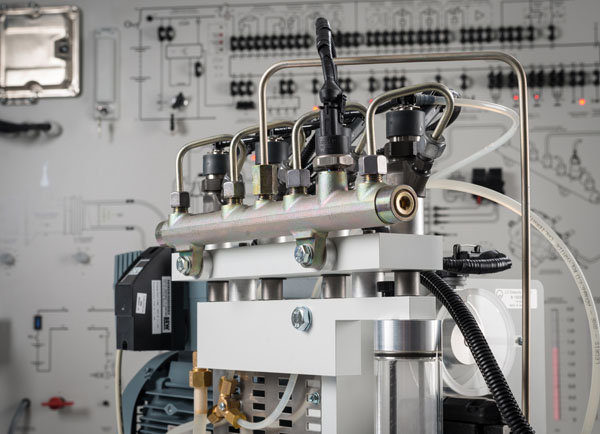

1 8-1503431-100-02-0 Hydraulic aggregat Common Rail EW
1 854883 Mobile Experiment stand 1300 LD
1 738027  4  Digital power supply 1 - 16 V/40 A LD
1 688131 * Mains cable Type G LD
1 598141 AC electrical frame LD
1 7389821  8  Safety experiment cables, set of 51 LD
1 500990 Adapter sockets, set of 2 LD
1 775037DE  4  LIT-print: Common Rail, German LD
1 775037EN LIT-print: Common Rail LD
Note: to make full use of the system there is an original universal third party vehicle diagnosis computer required supporting the makes Toyota, Renault and Citroen since MY 2000 !

Measuring equipment
1 524013SKFZ Sensor-CASSY 2 Starter, Automotive LD
1 5240431  4  30-A-Box LD
1 524076  4  AUTO-BOX i LD
1 739004  8  DMM for electrical vehicles LD
1 739001  4  Infrared-thermometer LD
1 739008 IR Thermal Imaging Camera LD

Articles marked with * are not essential, we do however recommend them to carry out the experiment.
