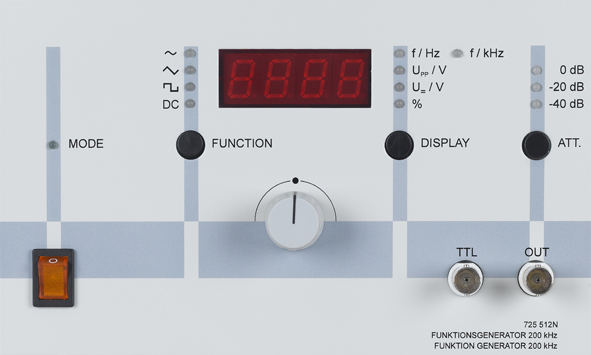

3HE Function generator channel module

LD 7255121
3HE Function generator channel module
3HE Function generator channel module

Description

Microprocessor-controlled signal generator.
Equipped with an illuminated mains switch.

Channel module, exclusively for mounting in channel module housing, e.g. channel module base 84 TE (725151).

Technical data

  • Functions:
    sine/triangular/square-wave/DC
  • Square-wave signal: duty cycle 10 %...90 %,
    adjustable in steps of 5 %
  • Frequency range: 1 Hz...200 kHz
  • Resolution: 1 mHz...100 Hz,
    frequency-dependent
  • Output voltage: 0...20 Vpp continuous
  • DC offset: ± 10 V
  • Display: 4-digit LC display for signal
    parameters and functions
  • Attenuator: 0 dB, -20 dB, -40 dB
  • Output: Impedance 50 Ohm
  • Trigger output: TTL level
  • Output: BNC sockets
  • Width: 42 PU
