Electricity and electronics accessories
-
Connecting leads, 32 A
For use in low-voltage circuits, flexible PVC strand, plug with full insulated axial socket, strain-relieved.
- Plug and socket: 4 mm dia. (nickel-plated)
- Conductor cross section: 2.5 mm2
- Continuous current: 32 A max.
- Contact resistance: 1.8 mΩ
Kat.-Nr. Length Colour 501 20 4 25 cm Red 501 21 4 25 cm Blue 501 23 4 25 cm Black 501 40 4 25 cm Yellow/Green 501 25 4 50 cm Red 501 26 4 50 cm Blue 501 28 4 50 cm Black 501 41 4 50 cm Yellow/Green 501 30 4 100 cm Red 501 31 4 100 cm Blue 501 33 4 100 cm Black 501 42 4 100 cm Yellow/Green 501 35 4 200 cm Red 501 36 4 200 cm Blue 501 38 4 200 cm Black 501 43 4 200 cm Yellow/Green -
501540 4
Connecting leads, 32 A, set of 32
-
Safety connection leads, 32 A
For use in low-voltage circuits; flexible PVC strand, safety plug with axial safety socket on both ends.
- Plug and socket: 4 mm dia. (nickel-plated)
- Conductor cross section: 2,5 mm2
- Continuous current: 32 A max.
- Contact resistance: 1.8 mΩ
Kat.-Nr. Length Colour 500 601 4 10 cm Red 500 602 4 10 cm Blue 500 604 4 10 cm Black 500 600 4 10 cm Yellow/Green 500 611 4 25 cm Red 500 612 4 25 cm Blue 500 614 4 25 cm Black 500 610 4 25 cm Yellow/Green 500 621 4 50 cm Red 500 622 4 50 cm Blue 500 624 4 50 cm Black 500 620 8 50 cm Yellow/Green 500 641 4 100 cm Red 500 642 4 100 cm Blue 500 644 4 100 cm Black 500 640 4 100 cm Yellow/Green 500 661 4 200 cm Red 500 662 4 200 cm Blue 500 664 4 200 cm Black -
500851 4
Safety connecting leads, 32 A, set of 32
-

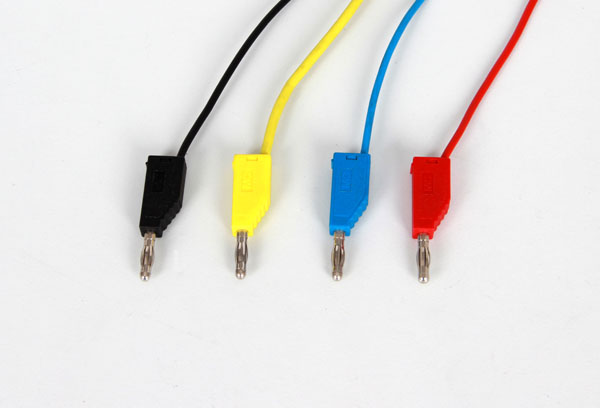

Connecting leads, 19 A
For use in low-voltage circuits, copper strand, plug with full insulated axial socket, to attach more cables, strain-relieved.
- Plug and socket: 4 mm dia. (nickel-plated)
- Conductor cross section: 1 mm2
- Continuous current: 19 A max.
- Contact resistance: 1.8 mΩ
Kat.-Nr. Length Colour 500 401 4 10 cm Red 500 402 4 10 cm Blue 500 404 4 10 cm Black 500 400 4 10 cm Yellow/Green 500 411 4 25 cm Red 500 412 4 25 cm Blue 500 414 4 25 cm Black 500 410 4 25 cm Yellow/Green 500 421 4 50 cm Red 500 422 4 50 cm Blue 500 424 4 50 cm Black 500 420 4 50 cm Yellow/Green 500 441 4 100 cm Red 500 442 4 100 cm Blue 500 444 4 100 cm Black 500 440 4 100 cm Yellow/Green -
501531 4
Connecting leads, 19 A, set of 42
-
501532 4
Connecting leads, 19 A, set of 30
-
501533 4
Connecting leads, 19 A, set of 10
-
Connecting leads, 19 A, pair
For use in low-voltage circuits, copper strand, plug with full insulated axial socket, to attach more cables, strain-relieved.
- Plug and socket: 4 mm dia. (nickel-plated)
- Conductor cross section: 1 mm2
- Continuous current: 19 A max.
- Contact resistance: 1.8 mΩ
Kat.-Nr. Length Colour 501 44 4 25 cm red and blue 501 45 4 50 cm red and blue 501 46 4 100 cm red and blue 501 441 4 25 cm black 501 451 4 50 cm black 501 461 4 100 cm black -
501051 4
Cable for high voltages, 1.5 m
