Description

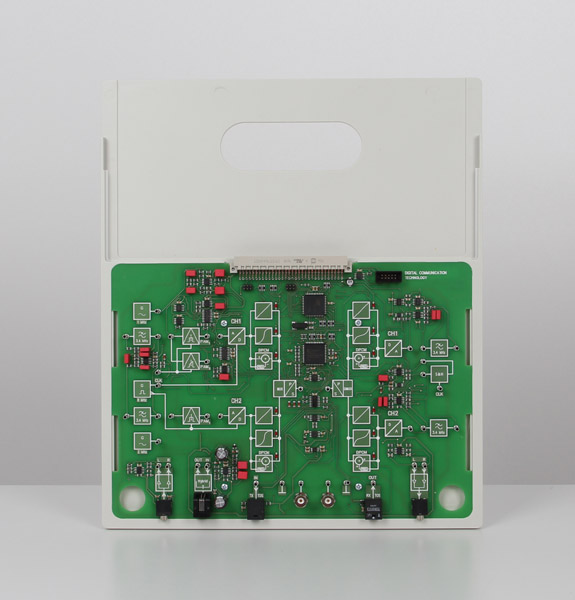

Comprises an experiment board, housed within a board carrier, for use in conjunction with, and powered by the Master Unit (700020, supplied separately) teaching a practical course on digital signal processing, experiments being wired using 2 mm cables (700022, supplied separately). Attention is paid to the realisation and function of fibre optic transmission systems with emphasis on applications of PCM technology, for example the transmission of voice and signals with real telephones, sound cards and CD players. Course content, experiment instructions and tasks are taught via course-specific software.

Curriculum Coverage

  • Characteristics of pulse carriers
  • Generation of PAM
  • PAM (natural)
  • PAM (S&H)
  • PAM spectrum
  • Over sampling / under sampling
  • Aliasing
  • Shannon theorem
  • Pulse code modulation (PCM)
  • Quantisation linear & non-linear
  • Compression / expansion
  • Code errors
  • Time division multiplexing (TDM)
  • Sychronisation
  • Quantisation noise
  • Difference pulse code modulation (DPCM)
  • Optical signal transmission
  • Signal transmission by wire (coaxial line - two-wire line)
  • Simplex / duplex communication

Optionally

  • Transmission of voice (requires external signals, CD player, telephones etc.)
  • Influence of the trigger and type of quantization on the speech intelligibility
  • Duplex communication (requires 2 x COM3LAB Course Digital Communication Technology, as well as external signal sources)

Virtual Laboratory

  • Oscilloscope
  • Function Generator
  • Multimeter (x2)
  • Digital Analyser
  • Spectrum Analyser (FFT module)
  • Frequency Counter

Additional Functions

  • Word Processing
  • Printer
  • Pocket Calculator
  • Free Experimentation
  • Glossary



The COM3LAB software contains courses in all supported languages and the current version can be downloaded from www.ld-didactic.de for free. Alternatively, the COM3LAB software can also be obtained on DVD (70000CBT).

Additionally required: 7007302

Technical data

  • 2 x PAM Modulator
  • 2 x PCM Modulator
  • 1 x Clock-pulse generator
  • 2 x PAM Demodulator
  • 2 x PCM Demodulator
  • 1 x Signal source Sinus, 1 kHz
  • 1 x Signal source Sinus, 2 kHz
  • 1 x RJ-12 socket with hybrid termination circuit
  • 1 x Jack bush for connecting external signal sources
  • 1 x Jack bush for connecting external active speakers
  • 1 x Optical transmitter
  • 1 x Optical receiver

Additionally required

1 70000CBT COM3LAB Software LD
1 COM3LAB: Master Unit
1 Set of safety cables (2 mm, 16 Qty., 6 x 30 cm & 10 x 15 cm)
1 7007302 COM3LAB: Digital Communication Technology Accessories LD
1 PC with Windows 7/8/10

Downloads

EXE EXE COM3LAB Software Package (3.1.415)
Free full version (ca. 1.5GB), compatible with 700 00-00 (COM4LAB Master Unit)
