Control Unit Two Pulse

LD 73512
Control Unit Two Pulse
Control Unit Two Pulse

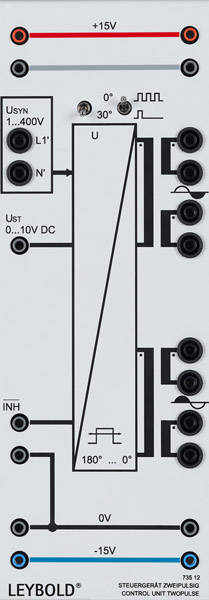

Description

Trigger pulse generator in line-commutated, single-phase rectifier and inverter circuits as well as in AC controllers.
Single pulse or pulse train operation possible. Phase shift can be set for various
natural commutating points: 0°, 30°
Inputs/outputs:
  • 2 x 2 electrically isolated pulse outputs
  • Pulse inhibit input
  • Synchronizing voltage: 1...400 V AC
  • Input control voltage: 0...10 V DC for
    gate control angle 180°...0°
Supply voltage: ± 15 V DC

Related Documents

PDF (Instruction Sheet) PDF (Instruction Sheet) [735 12] Control Unit Two Pulse
