DC power supply 0–30 V / 0–5 A

DC power supply 0–30 V / 0–5 A

521548

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

Request an offer

Name *

Email *

Thank you for your inquiry. We will get back to you as soon as possible.

Description

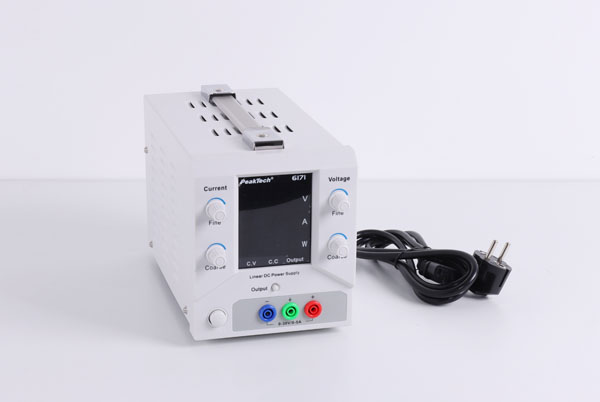

The DC power supply is a digitally controlled laboratory power supply with an adjustable output from 0 to 30 V DC and up to 5 A. Voltage and current values are clearly displayed on LED indicators and can be set precisely using separate rotary controls for coarse and fine adjustment. Thanks to linear regulation, current preselection and integrated overload and short-circuit protection, the unit is suitable for applications in education, laboratories and workshops. The robust metal housing with temperature-controlled ventilation ensures reliable continuous operation.

Technical data

Output voltage 0 – 30 V DC
Output current 0 – 5 A DC
Output power approx. 150 W
Number of outputs 1
Display four-digit LED segment displays for voltage, current and power
Input voltage 115–230 VAC, 50/60 Hz
Safety requirements EN 61010-1, EN 61558-2-6
Protection features overload protection, short-circuit proof
Dimensions approx. 135 × 165 × 260 mm
Weight approx. 4.8 kg

Related Documents

PDF (Experiment description)	P2.6.2.1 Frictional losses in the hot-air engine (calorific determination)
PDF (Experiment description)	P2.6.2.3 Determining the efficiency of the hot-air engine as a refrigerator
