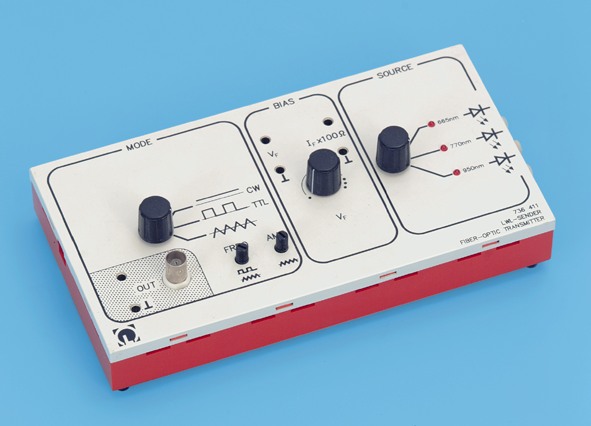

Fiber-Optic Transmitter

Fiber-Optic Transmitter

736411

Description

Three built-in, switchable LEDs permit experiments to be carried out on 3 different wavelengths. Potentiometer for continuous adjustment of the operating voltage for the recording of characteristics. 4-mm sockets for the connection of an XY recorder or the CASSY interface. Internal signal generator (triangular/square-wave) with BNC/4-mm output sockets for modulation experiments.

Additionally required:
1 plug-in power supply with 12 V AC output, e.g. cat. no. 562 791

Technical data

Light sources: LEDs with integrated fiber-optic launching system
Fiber optic connection: screw down clamp terminal
Operating voltage: 12 V AC
Dimensions: 215 x 115 x 60 mm (L x W x H)
Weight: approx. 500 g
