Load mechanical 1 kW

Load mechanical 1 kW

739503

Load mechanical 1 kW

Description

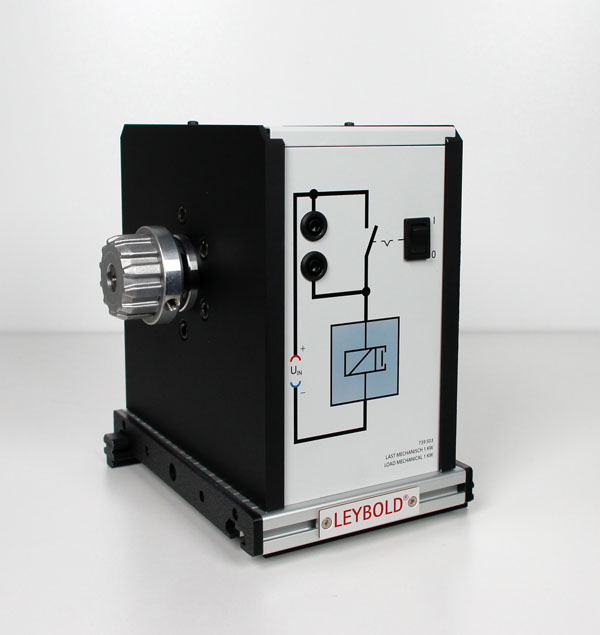

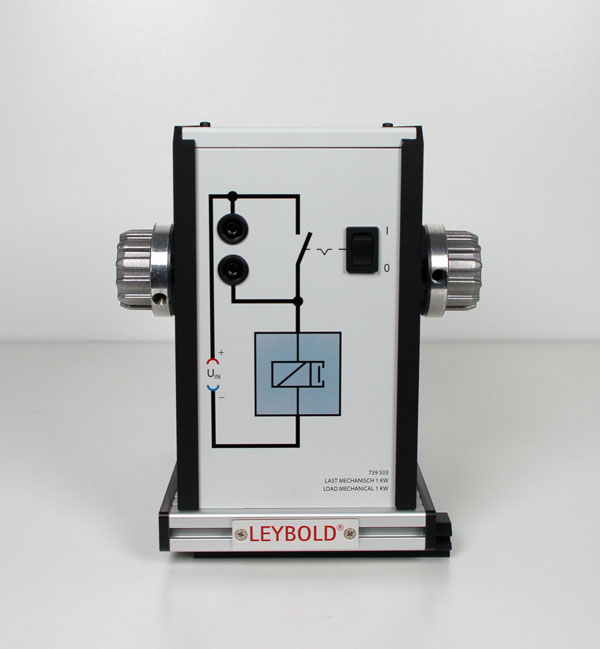

Mechanical load for devices of the 1 kW class mounted on an aluminum base with two shaft ends. The device can be used as a load or as a coupling.

Operation as a load

The load torque can be continuously adjusted via the current. The free shaft end is secured against turning with the help of the shaft lock.

Operation as a clutch

The clutch can be triggered via a built-in switch or an external closing contact. The drive is coupled on one side and the output on the other.

This component has to be mounted on the Machine Base Unit 773110 or 773115.
An adjustable current source 0 - 1.5 A / 24 V is required for operation as a load.

Technical data

Max voltage: U_max = 24 VDC
Max current: I_max = 1 A
Max speed: n_max = 1,800 rpm
Nominal torque @ 1 A: M_N = 12 Nm
Max on-time: t_on(max) = 60 s
Min on-off-ratio: 1:5

Scope of delivery

Load mechanical 1 kW
Blocking extension

Related Documents

PDF (Instruction Sheet)

[739 503] Load mechanical 1 kW
