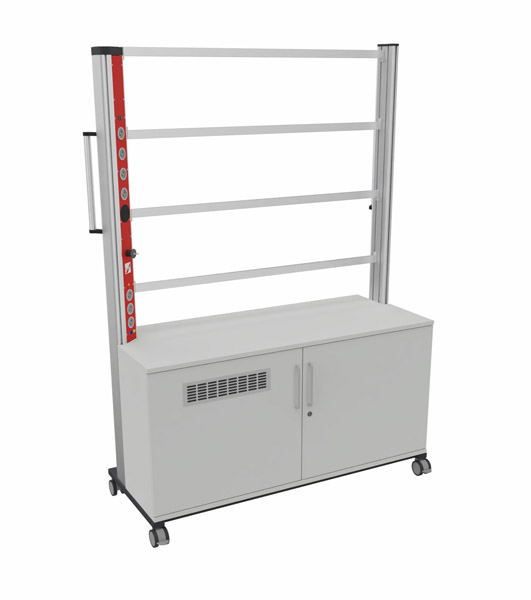

Mobile experiment stand PO-2

mobile experiment stand with cabinet element and electrical installation
aluminium system profiles on both sides, left profil for electrical installation
tubular handle on one system profile
3-level experimental frame with changeable profiles and brush strip
frame profiles adjustable in height
cabinet element with two lockable doors, safety lock and partition panel
left: 1 level with grooved mats for DIN A4 panels, 1 level for storage
right: storage space for PC, with ventilation grille
4 double swivel castors diameter 75 mm, two of them lockable

Insert plates for system profile left:

· Switch-on panel 1-phase with voltage pick-up, key-operated mushroom-head switch, black, phase control lamp, 3 earthed sockets, 3 safety laboratory sockets
· Mains voltage 1/N/PE ~ 50Hz 230V 16A with rocker switch, 4 earthed sockets, cable outlet box 60mm

Connection cable 5m with Schuko plug 3pole/16A, Cable suspension device 2-fold
Dimensions: W= 1421 mm, D= 580 mm, H= 830/1975 mm
