Science Lab Physics Energy EG1 (Block 10)

Science Lab Physics Energy EG1 (Block 10)

207121B10

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

Request an offer

Name *

Email *

Thank you for your inquiry. We will get back to you as soon as possible.

Description

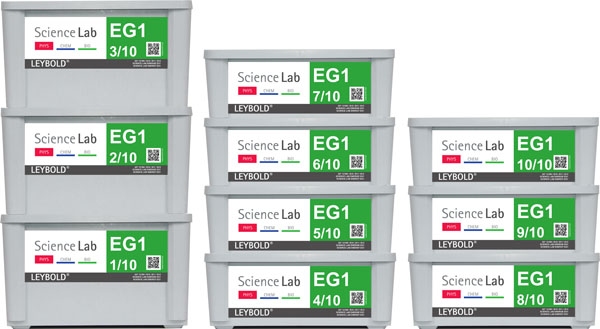

Student experiment block of the student experiment system Science Lab in the field of physics. Set-up material for 10 work groups in storage sorted by equipment. With the equipment block EG1, together with the Science Lab Physics Basic PB (207 100B10), more than 20 experiments at high school, college and basic university level for worldwide curriculums can be performed.
The students deal with the topics of thermodynamics. While working out the curriculum required topics, they are also trained in communication and assessment skills. In combination with the Mobile-CASSY 2 WiFi (524 005W2), there are additional evaluation options which enable the students digital learning.

Experimental topics:
Thermal expansion
Heat transfer
Thermal insulation
Heat capacities
States of aggregation and transition

Scope of delivery

10	30109 4	Bosshead S
10	30942 4	Colouring, red, 10 g
10	30983 4	Funnel PE 40 mm Ø
10	34082 4	Double scale
10	362291	Double pipe support
20	362292 4	Transparent tube with 2 caps
10	38110 4	Plastic riser tube
10	381311 4	Bimetallic strip
10	381331 4	Pointer for linear expansion
10	381334 8	Aluminium tube 400 mm x 8 mm Ø
10	381335	Iron tube 400 mm x 8 mm Ø
10	38220 4	Stirring thermometer -30...+110 °C, ungraduated
10	38221 4	Stirring thermometer -10...+110 °C
10	38424 8	Lid for glass calorimeter
10	384502 8	Heat conducting rod steel
10	384503 8	Heat conducting rod copper
10	38640 4	Glass calorimeter
10	38779 4	Blade wheel
10	59008 4	Measuring cylinder 100 ml
10	59048 4	Immersion heater 12 V/10 W
10	608120 4	Wire gauze 120 mm x 120 mm
7	647001 8	Tray, low
3	647002	Tray, high
10	664130 4	Beaker, Boro 3.3, 250 ml, squat
10	664181 4	Petri dish 60 mm
10	664248 4	Erlenmeyer flask, Boro 3.3, 50 ml, narrow neck
10	665226 8	Connector, straight, 6/8 mm Ø
10	666555 4	Universal clamp 0...80 mm
10	666573 4	Stand ring with stem 100 mm Ø
10	667194 8	Silicone tubing 7 mm Ø, 1 m

Additionally required

1	207100B10	Science Lab Physics Basic PB (Block 10)
1	520712 4	LIT-digital: LP2 Science Lab Energy
10	521488	AC/DC power supply 0...12 V/3 A
10	607020 8	Safety gas hose, 0.5 m
10	610010 8	Laboratory safety goggles
10	666695 8	Bunsen burner, natural gas
10	656017 4	* Teclu burner, universal

Articles marked with * are alternative.

Additionally recommended

10	315234 8	Electronic balance MAULtronic S
1	52071 4	LIT-digital: LP Science Lab Physics
1	5207121DE 4	LIT-print: LP2.1 Heat, German
10	524005W2	Mobile-CASSY 2 WiFi
10	647003 8	Lid for tray
