Digitalisation: Multi function steering wheel which CAN and LIN databus

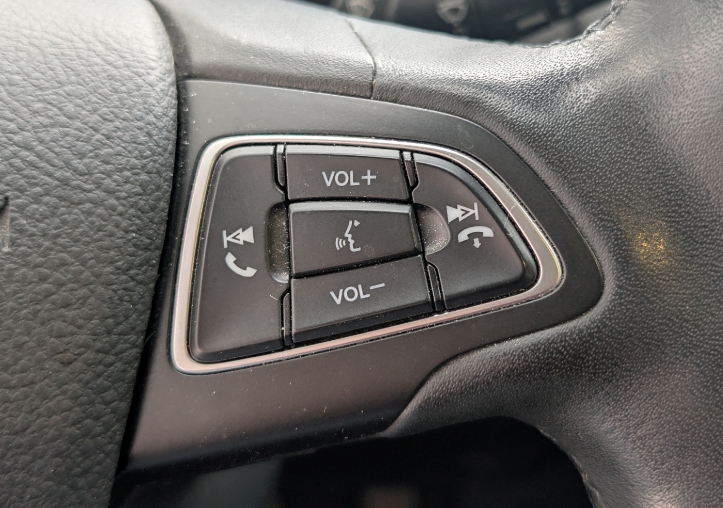

The equipment set A2.6.1.16 Networking automotive systems: LIN Databus Multifunction steering wheel provides the hardware basis for a collection of experiments with which you can investigate this subject in a practical way. The experiments presented here are based on the content of the currently valid framework curricula and can be extended as required.

Besides basic experiments, particular emphasis is placed on fault finding. The instructor can activate common faults in a targeted manner, and the learner has to identify them using a digital multimeter (DMM) and/or a digital storage oscilloscope (DSO). In line with the state of the art, a computer-aided DSO is used.

The following topics are covered:

• Measurement and interpretation of physical signals
• Interpretation of logical LIN bus data
• Common faults in LIN databus systems
