Grid-feed transformer

773531

Grid-feed transformer
Article not yet available!

Description

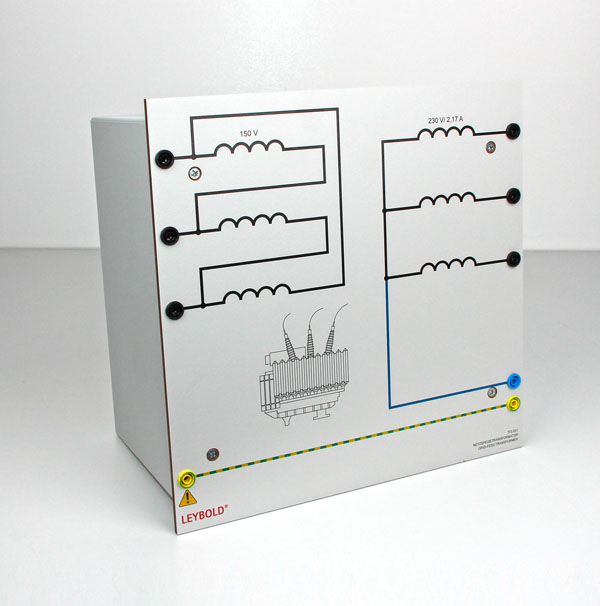

The three-phase grid-feed transformer converts an input voltage of 150 V (phase-to-phase voltage delta) into an output voltage of 230 V (phase-to-neutral voltage wye). The neutral point is connected on the output side. The transformer's switching group is Dyn5.

The transformer can be used to feed power of the universal inverter 7735297 into the local 230 V/400 V mains using. In this case, a sine wave filter 7735298 must be connected between the inverter output and the transformer.

Technical data

Dimentsion HxWxD	30 cm x 30 cm x 17 cm
Weight	18 kg
Vector Group	Dyn5
Power	1.5 kVA
Input voltage	3AC 150 V
Input current	6 A
Output voltage	3AC 400 V + N
Output current	2 A
Frequency	50/60 Hz
No-load losses	15 W
