Measuring the induced voltage in a conducting loop in a time-varying magnetic field

Measuring the induced voltage in a conducting loop in a time-varying magnetic field

VP3.4.1.2

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

Request an offer

Name *

Email *

Thank you for your inquiry. We will get back to you as soon as possible.

Description

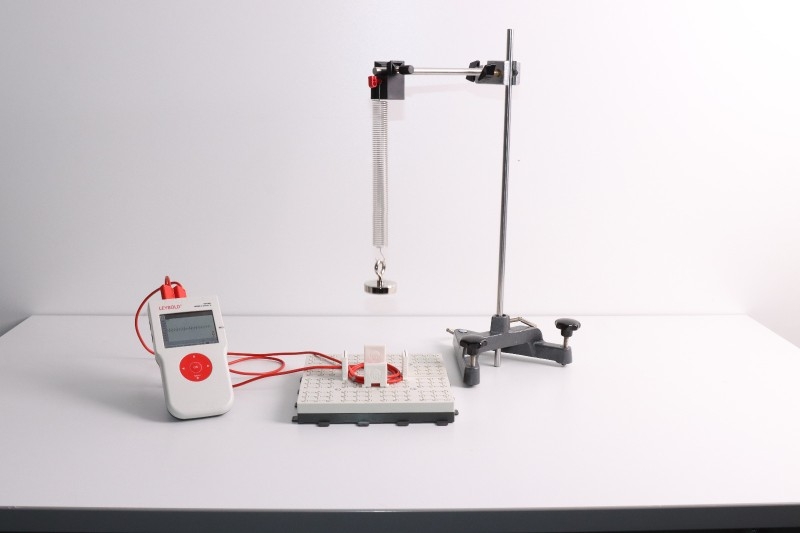

In experiment P3.4.1.2, the induced voltage in a conducting loop is investigated using a permanent magnet oscillating on a spring. Measurements are taken for three loop configurations: a large-diameter loop with one turn, a large-diameter loop with two turns, and a small-diameter loop with two turns. This allows qualitative conclusions to be drawn about how the number of turns N and the change in magnetic flux affect the induced voltage.

Components of equipment sets

2	57681 4	Plug-in board safety socket, 20/10
1	50148 4	Bridging plugs STE 2/19, set of 10
1	500661 4	Safety connection lead, 200 cm, red
1	35207 4	Helical spring 10 N/m
1	30002 4	Stand base, V-shaped, small
1	30042 4	Stand rod, 47 cm, 12 mm diam.
1	30040 8	Stand rod, 10 cm, 12 mm diam.
1	51018	Neodymium magnet with hook

Experiment Instructions

Lab Doc (teacher's version)	P3.4.1.2 Measuring the induced voltage in a conducting loop in a time-varying magnetic field (Teacher)
Free experimentation with CASSY	P3412_1.labm (Resources)
Free experimentation with CASSY	P3412_2.labm (Resources)
Free experimentation with CASSY	P3412_3.labm (Resources)
Free experimentation with CASSY	P3412_4.labm (Resources)
