Measuring the induced voltage in a conductor moving through a static magnetic field

VP3.4.1.3
Measuring the induced voltage in a conductor moving through a static magnetic field
Measuring the induced voltage in a conductor moving through a static magnetic field

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
 This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
 Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

˟

Request an offer

Thank you for your inquiry. We will get back to you as soon as possible.

˟

Description

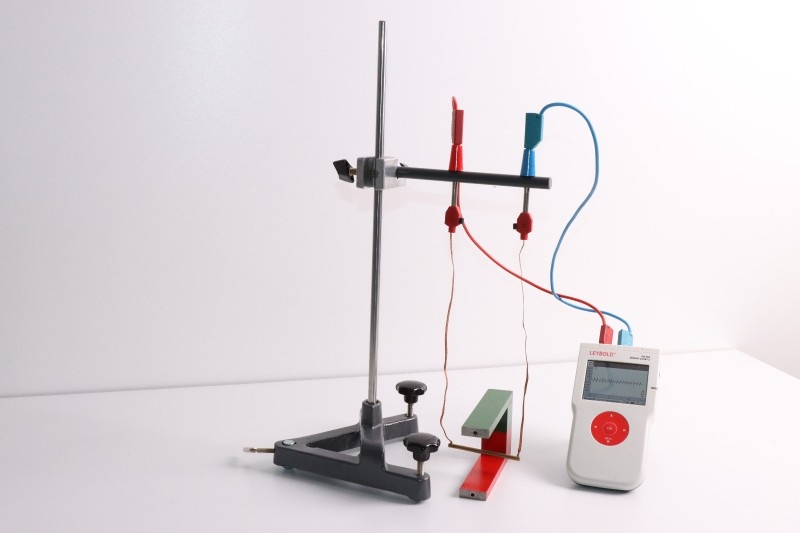

In experiment P3.4.1.3, the voltage induced in a straight conductor moving through the magnetic field of a strong horseshoe magnet is recorded using the Mobile-CASSY 2. The induced voltage produced during periodic motion in the approximately uniform field between the pole pieces is compared with that produced in the fringe field.

Components of equipment sets

1 68591  8  Conductor swing LD
1 51022  4  Large horseshoe magnet with yoke LD
1 726890  8  DC power supply unit 1...32 V/0...20 A LD
1 524005W2 Mobile-CASSY 2 WiFi LD
1 30002  4  Stand base, V-shaped, small LD
1 30043  8  Stand rod, 75 cm, 12 mm diam. LD
1 666615  4  Universal bosshead LD
1 68589  4  Support rod with 4 mm safety sockets LD

Experiment Instructions

Lab Doc (teacher's version) Lab Doc (teacher's version) P3.4.1.3 Measuring the induced voltage in a conductor moving through a static magnetic field (Teacher)
Free experimentation with CASSY Free experimentation with CASSY P3413_1.labm (Resources)
Free experimentation with CASSY Free experimentation with CASSY P3413_2.labm (Resources)
