Generation of standing rope waves and determination of the wavelength

Generation of standing rope waves and determination of the wavelength

VP1.6.1.4

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.

For ordering the dangerous good or other information please contact our customer service center.
Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

Request an offer

Name *

Email *

Thank you for your inquiry. We will get back to you as soon as possible.

Description

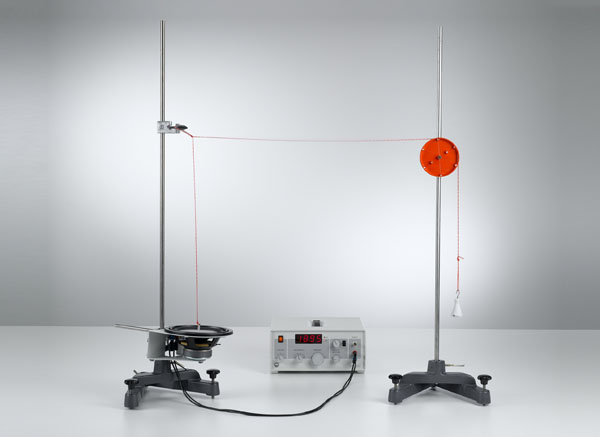

In this experiment a transversal wave is generated. By moving one end of a string up and down and keeping the other end fixed, a wave is created. The wave will be reflected at the fixed end and runs back on the string. For defined frequencies, certain points will being fixed (nodal) while others (antinodes) oscillate with high amplitude.

Components of equipment sets

1	30950 4	Demonstration cord
1	58709 4	Vibration generator
1	522561 4	Function generator P
1	340921 8	Pulley Ø 100 mm, plug-in
1	31178 4	Tape measure 2 m / 1 mm
2	30001 4	Stand base, V-shaped, large
2	30044 4	Stand rod, 100 cm, 12 mm diam.
2	30101 4	Leybold multiclamp
1	30125 4	Support block
1	50131 4	Connecting lead, 32 A, 100 cm, blue
1	50130 8	Connecting lead, 32 A, 100 cm, red
1	33704 4	Driving weights, set

Experiment Instructions

PDF (Experiment description)

P1.6.1.4 Production of standing waves on a string and determination of the wavelength
