Precession and nutation of a gyroscope

VP1.4.4.3
Precession and nutation of a gyroscope
Precession and nutation of a gyroscope Precession of the gyroscope (P1.4.4.3)
Precession and nutation of a gyroscope

This product is classified as a dangerous good and is not available for online purchase.

For ordering the dangerous good or other information please contact our customer service center.
This experiment/set up contains dangerous goods.
These are not available for online purchase.
You may order the experiment/set up without the dangerous goods.


For ordering the dangerous good or other information please contact our customer service center.
Email: webshopuk@ld-didactic.de
Telephone:+49 (0) 22 33 / 604 – 319
Go to contact form

˟

Request an offer

Thank you for your inquiry. We will get back to you as soon as possible.

˟

Description

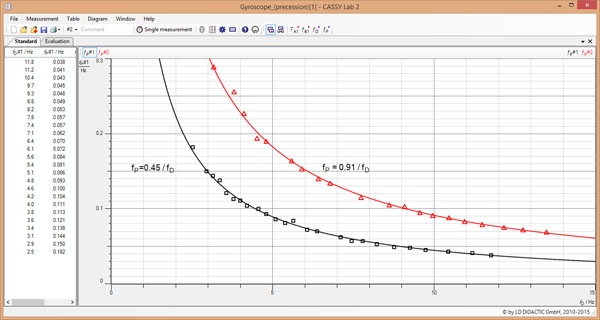

The aim of the experiment P1.4.4.3 is to investigate the precession of a gyroscope. The precession frequency fP is measured by means of the rotary motion sensor S, the rotary frequency f of the gyroscope disk by means of the reflextion light barrier, each in combination with CASSY. The dependance of the precession frequency fP on the applied force, i.e. the torque M and the rotary frequency f is determined quantitatively. The relationship

applies for the corresponding angular frequencies ωP and ω and for a known moment of inertia I of the gyroscope around its axis of symmetry.

The nutation of a force-free gyroscope is investigated, too. The nutation frequency fN is measured by means of the rotary motion sensor S, the rotary frequency f of the gyroscope disk by means of the reflextion light barrier, each in combination with CASSY. The dependance of the nutation frequency fN on the rotary frequency f is determined quantitatively. The relationship

applies for the corresponding angular frequencies ωN and ω and for known moments of inertia I of the gyroscope around its axis of symmetry (rotational axis of the gyroscope disk) and I around the pivotal point (point of support) of the axis.

Components of equipment sets

1 34820  8  Gyroscope LD
2 34263  4  Weight 50 g LD
1 524082  8  Rotary motion sensor S LD
1 337468  8  Reflection light barrier LD
1 590021  8  Double spring clip LD
1 524074  8  Timer S LD
1 524013  8  Sensor-CASSY 2 LD
1 524220  8  CASSY Lab 2 LD
1 additionally required:
PC with Windows XP/Vista/7/8/10 (x86 or x64)

Experiment Instructions

PDF (Description from CASSY Lab) PDF (Description from CASSY Lab) P1.4.4.3 Precession and nutation of a gyroscope
